What is PCBA test? PCBA test (Printed Circuit Board Assembly Test) refers to the process of evaluating the electrical performance, functional validation, and reliability of assembled printed circuit boards (PCBA) with mounted components. Its primary goals are to ensure the board’s design functions correctly, soldering quality meets standards, and the product operates stably across diverse environments.
As a critical step in electronics manufacturing, PCBA test covers essential procedures ranging from basic continuity checks to complex scenario simulations. Key aspects include:
- Electrical Performance Verification: Verifies circuit connectivity by checking parameters like voltage, current, and resistance.
- Functional Simulation Testing: Runs predefined programs to mimic user operations (e.g., button responses, signal transmission) and validate overall functionality.
- Reliability Evaluation: Identifies long-term stability through aging tests and environmental stress tests (e.g., high temperature, vibration).
By implementing rigorous PCBA Test protocols, manufacturers significantly reduce post-sale failures and enhance customer trust.

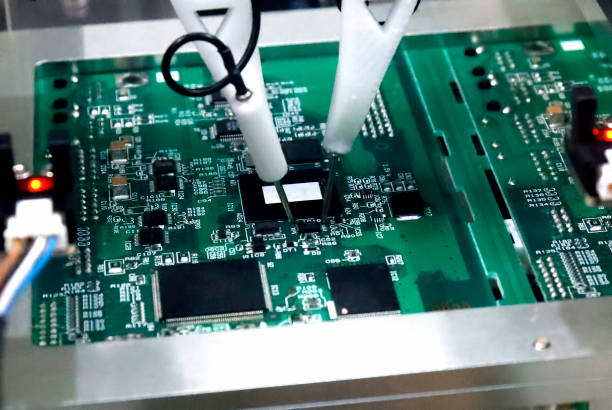

pcba testing
Advantages of PCBA test
1. Quality Assurance & Cost Control
PCBA test detects soldering defects (e.g., short circuits, cold solder joints) or misplaced components early in production, preventing costly batch rework. Automated testing equipment (e.g., ICT, FCT) can intercept over 99% of defective units, reducing post-sale repair expenses.
2. Accelerated Time-to-Market
Standardized pcba test workflows (e.g., functional test fixture design) enable rapid iteration, ideal for fast-paced industries like consumer electronics. Preloaded test programs can reduce single-board testing time to seconds.
3. Adaptability to Diverse Industry Needs
PCBA test solutions are customizable for applications ranging from smartphone high-density boards to automotive-grade PCBs. For example, automotive electronics undergo extreme temperature cycling (-40°C to 125°C) to ensure safety and durability.
4. Compliance & Brand Protection
Strict testing aligns with ISO and IPC standards, mitigating legal risks from quality flaws. Consistent product performance also strengthens brand reputation.

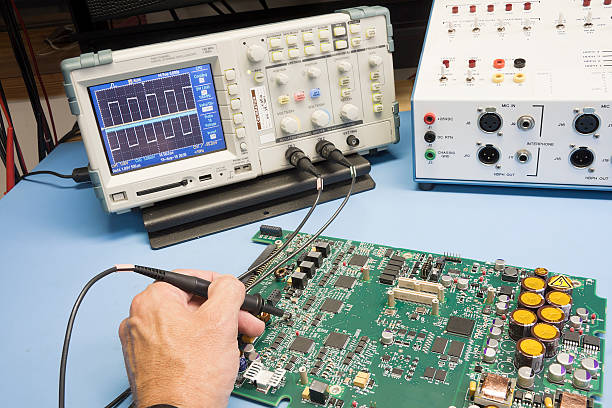

pcba test
Main Types of PCBA test
1. ICT (In-Circuit Test)
It uses a special tool to touch the PCBA test points. This tool can quickly measure things like resistance and capacitance. It can also tell you if a circuit is on or off. It is very efficient and can find problems in the manufacturing process, like open circuits and short circuits. However, ICT relies on specialized tools and complex software, which can be expensive and difficult to adapt to other situations.
2. FCT (Functional Circuit Test)
By simulating real-world operating conditions (e.g., input signals, load variations), FCT validates the board’s end-to-end performance, ensuring compliance with design specifications.
3. Flying probe testing
Ideal for prototypes or low-volume batches, this fixture-free method employs movable probes to access hard-to-reach test points on high-density boards, such as 0.35mm-pitch BGA components.
4. Burn-In Test
Powers PCBA continuously to uncover latent defects (e.g., solder fatigue), commonly used in medical devices and high-reliability fields.
5. Environmental Reliability Testing
Includes thermal shock, vibration, and humidity tests to evaluate performance under extreme conditions.
6. AOI & X-Ray Inspection
Uses optical or X-ray imaging to inspect solder joints, especially for miniaturized components.
Future Trends in PCBA test
1. Intelligent & Automated Testing
AI and machine learning enable adaptive diagnostics. For example, AI algorithms predict failure modes using historical data to optimize test parameters.
2. Challenges in High-Density Integration
5G and IoT devices drive demand for High-Density Interconnect (HDI) technology, requiring micron-level circuit inspection and solutions for multi-layer signal interference.
3. Green Testing Technologies
Lead-free soldering and eco-friendly substrates demand energy-efficient testing processes. Example: Reusable test fixtures reduce waste.
4. IoT-Driven Remote Testing
Cloud-synced IoT systems enable real-time quality monitoring and global factory collaboration.
5. Cross-Industry Collaboration
Partnerships with chipmakers and design software firms aim to standardize test protocols (e.g., automated test case libraries), shortening product validation cycles.
Conclusion
PCBA test, a cornerstone of electronics manufacturing, continues to evolve with technological advancements. From basic electrical checks to AI-driven predictive maintenance, its role is shifting from a “cost center” to a “competitive enabler.” To address complex market demands, businesses must adopt high-density, eco-friendly, and intelligent testing systems.
