FR-4 PCB - FR-4 PCB Board

When it comes to building reliable, cost-effective electronics that power our daily lives and industrial operations, FR-4 PCB Board stands as the unrivaled "workhorse" of the industry. Named for its UL94 V-0 flame-retardant rating—ensuring safety in enclosed devices—it combines robust mechanical strength, stable electrical insulation, and broad manufacturing adaptability, making it the first choice for 80% of low-to-medium frequency electronic applications worldwide.

Why FR-4 PCB? Balance of Performance, Cost, and Versatility

Unlike specialized high-frequency or high-power PCBs, FR-4 excels at meeting the "everyday needs" of electronics with no unnecessary over-engineering:

Safety & Durability Built-In: Its glass fiber-reinforced epoxy core delivers ≥340 MPa vertical flexural strength—tough enough to withstand assembly stress, vibration in industrial machines, and the daily handling of consumer gadgets. The UL94 V-0 flame retardancy adds a critical safety layer, preventing fire spread in devices like smartphones, TVs, or automotive infotainment systems.

Flexible for Diverse Power & Signal Needs: With copper thickness ranging from 0.5oz (18μm) to 6oz (210μm), it adapts seamlessly: 0.5oz copper powers tiny IoT sensors (e.g., temperature monitors), while 2oz–6oz variants handle medium-current tasks like industrial motor controls or LED driver boards. Even better, its 1–12 layer design accommodates everything from simple single-layer LED strips to complex 4-layer smartphone motherboards.

Cost-Effective Without Compromise: Built on standard FR-4 substrate (Tg 130°C–180°C), it avoids the premium of specialized materials—yet still meets strict industry standards. Whether you’re producing 100 prototype boards for a startup or 100,000 units for a consumer device, FR-4’s mature manufacturing processes (e.g., lead-free HASL, ENIG) enable fast turnaround (48-hour prototypes) and scalable pricing.

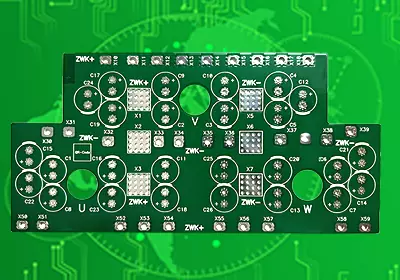

FR-4 PCB Board

Tailored to Your Application: From Consumer Gadgets to Industrial Gear

FR-4’s adaptability shines in how it meets niche needs without sacrificing simplicity:

For Consumer Electronics: Opt for standard Tg (130°C–150°C) FR-4 with OSP or lead-free HASL surface treatment—ideal for smartphones, wireless earbuds, or home appliance control boards. Its low water absorption (≤19mg for 1.6mm boards) ensures stable performance in humid environments, like kitchen refrigerators or bathroom smart mirrors.

For Industrial & Automotive Use: Choose high-Tg FR-4 (Tg ≥170°C) to withstand lead-free soldering temperatures (up to 260°C) and long-term operation in 85°C+ industrial workshops or car cabins. Halogen-free variants are also available for eco-sensitive sectors, such as medical devices or EU-compliant industrial sensors.

For Mixed-Signal Designs: Even in complex systems (e.g., 5G routers or industrial PLCs), FR-4 plays a key role. Its 4.2–4.8 dielectric constant (Dk) at 1MHz–1GHz works perfectly for power layers and low-speed signal paths, while critical high-frequency sections can pair with specialized laminates (e.g., Rogers) in a "hybrid stackup"—balancing performance and cost.

Reliable, Compliant, and Supported by Experts

Every FR-4 PCB we supply meets global standards: RoHS 2.0 and REACH compliance for environmental safety, IPC-6012 for manufacturing quality, and IPC-TM-650-tested electrical properties (e.g., ≥10⁸ MΩ·cm volume resistivity for stable insulation). Whether you need to optimize for impedance control (50Ω/100Ω for USB/HDMI interfaces) or select the right surface treatment (ENIG for fine-pitch BGA chips, OSP for cost-sensitive projects), we tailor the board to your exact specs.

From powering your morning coffee maker’s control panel to running the sensors in a factory’s assembly line, FR-4 PCB Board delivers the consistency and value you need. Connect with the IPCB technical team today to discuss your project—we’ll help you choose the right FR-4 grade, layer count, and manufacturing process to turn your design into a reliable product.
