High Speed PCB

High Speed PCB

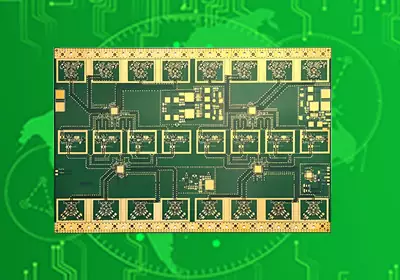

Product: High Speed PCB (High-Frequency Circuit Board)

Materials: Rogers RO4350B/5880, Taconic RF-35, Taiyo TU-872SLK (customizable)

Layer Count: 2-40 layers (up to 36 layers for data center backplanes)

Impedance Control: 25-120Ω, ±5% tolerance (±10% for ≥50Ω)

Operating Frequency: Up to 100GHz (millimeter-wave band)

Thermal Performance: Supports metal core/substrate designs with thermal conductivity up to 170W/m·K (AlN ceramic substrates)

Certifications: IPC-6018D, UL 94 V-0, RoHS 3.0, IATF 16949 (optional)
