Some details about low volume pcb assembly are as follows.
An overview of board assembly
In simple terms, PCB assembly is the process of installing electronic components. The tiny parts you see on the PCB are the main functional parts. The method of placing them in the right place is known as PCB assembly. Of course, this is the most critical part of the manufacturing process.
Therefore, how the components are placed on the PCB is very important. PCB factories often take a different approach. Each of these PCB assembly processes has its own unique advantages. In fact, some are very accurate, while others offer cheaper solutions.
Through-hole PCB assembly
Through Hole or TH, PCB assembly is the most commonly used method in PCB manufacturing. As the name suggests, PCB components are connected through holes and the leads of the components.
SMT assembly
The SMT PCB assembly process is another great way to connect components. However, you are limited to connecting components on a surface. With this method, you don't have to worry about punching holes because it only places the part on the surface of the PCB. This method usually allows you to work with smaller parts very quickly.
BGA assembly
This PCB assembly process is very interesting. It is known as BGA assembly, i.e., ball grid array. This method uses tiny solder balls to connect parts. Both microprocessors and chips are good examples of BGA assembly.
low volume pcb assembly
Wave soldering and hybrid assembly

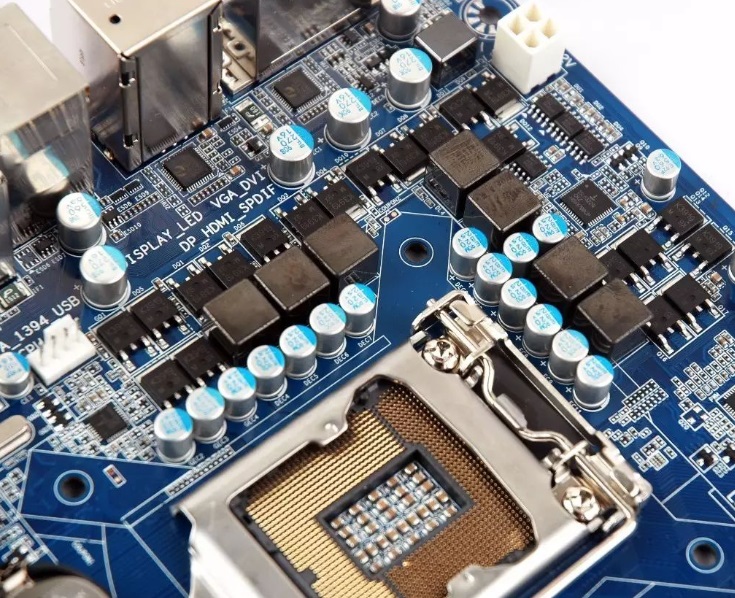

The wave soldering method uses solder waves to join through-hole parts. This method is very effective for simple PCB assembly. Finally, a hybrid PCB assembly may have all the PCB assembly steps. A computer motherboard is the best example of a hybrid assembly product.
Low volume pcb assembly design for DFM strategy
Smart design saves time and money, and PCB manufacturing is no exception. The most commonly used terms for PCB factories are DFA (Design for Assembly) and DFM (Design for Manufacturing). These two terms are often the standard for PCB manufacturing. Using these two standards can make your PCB design efficient and optimize costs.
This is often the case with DFA, as it simplifies the build process and eliminates costs due to errors. DFM, on the other hand, usually checks that your plan is in line with the manufacturing method. Combining the two will ensure that your PCB assembly schedule is running well and error-free.
When designing, there are a lot of rules to follow. Among them, three key points are crucial. The first is proper assembly planning. Careful planning is necessary to speed up production and reduce costs. Second, the width of the trace must be clear, and the signal trace must be short and straight. The third is punishment and benchmarking.
SMT assembly process with automated machines
SMT stands for Surface Mount Technology. It is the antithetical technique of TH assembly. In this method, you don't need to drill holes. However, each component is soldered to the PCB, providing a straightforward mounting method. As a result, assembling SMT PCBs is more efficient and faster.
Automated SMT machines are fast and accurate. They can place thousands of components per hour. If you do it yourself, it may take a few days. These machines also reduce human error. With SMT, you can control high quality and reduce labor expenses.
In the SMT assembly method, there is no need to place component leads. The entire method is fully automated. Start by preparing the solder paste. The automatic machine then picks up the element and places it in the correct position. Finally, when you heat the PCB, the component automatically goes into the specified position. As you can see, there is no need for human contact. As a result, you won't find any errors and be sure of the high precision of the final product.
Through-Hole Component Insertion PCB Assembly Process: Step-by-Step Instructions
The SMT PCB manufacturing method is only suitable for surface mount tasks. However, through-hole component placement is a different approach. This type of PCB is used in most electrical and electronic equipment, but not in high-performance equipment.
Prepare the PCBs and components required for TH PCB assembly
The room where the PCB is assembled must be clean and dust-free. If you go to a PCB factory like UETPCB, you will see that the production line has a good way to prevent dust.
This step is important because dust can interfere with the electrical signals between PCB components. Check the vias of the TH PCB structure to make sure they are aligned. Another person verifies the hole size to match the leads for a particular component.
low volume pcb assembly
Manual or automatic insertion
When everything is in place, the insertion process is usually implemented in two ways. Manual operation is slower, but ideal for sensitive equipment. Prototype, high-value or sensitive, and mixed-technology PCBs often require manual insertion. Auto-insertion, on the other hand, is ideal for batch products and significantly larger boards.
In this step, the overall job is to thread the lead of the component through the existing hole. Regardless of the technology used, it is important to ensure that the leads of these components are flush with the board. The operator or machine bends the leads slightly by hand to help secure the assembly.
After reading this article, maybe you get better in low volume pcb assembly.
