RF PCB Board - RF microwave PCB

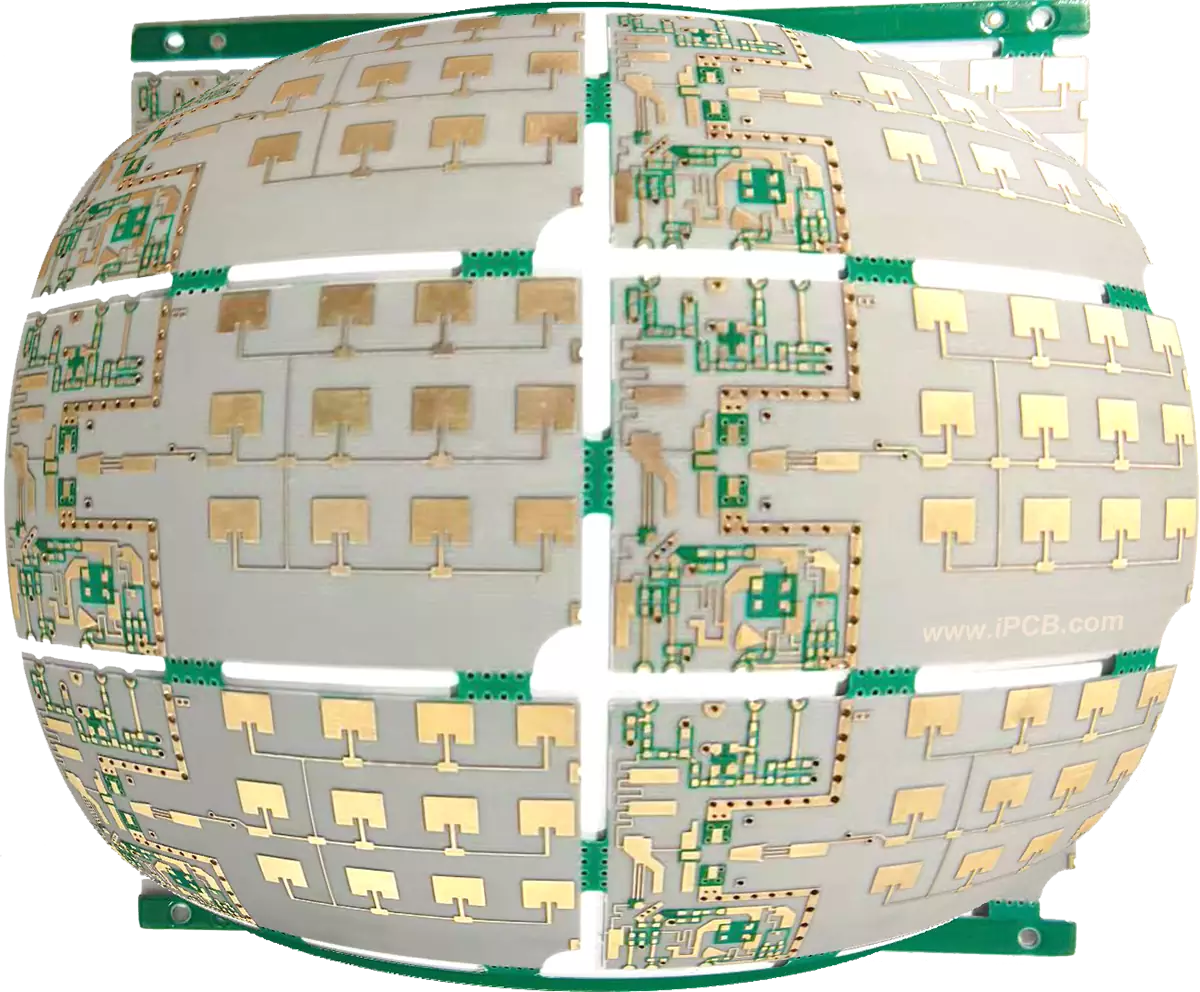

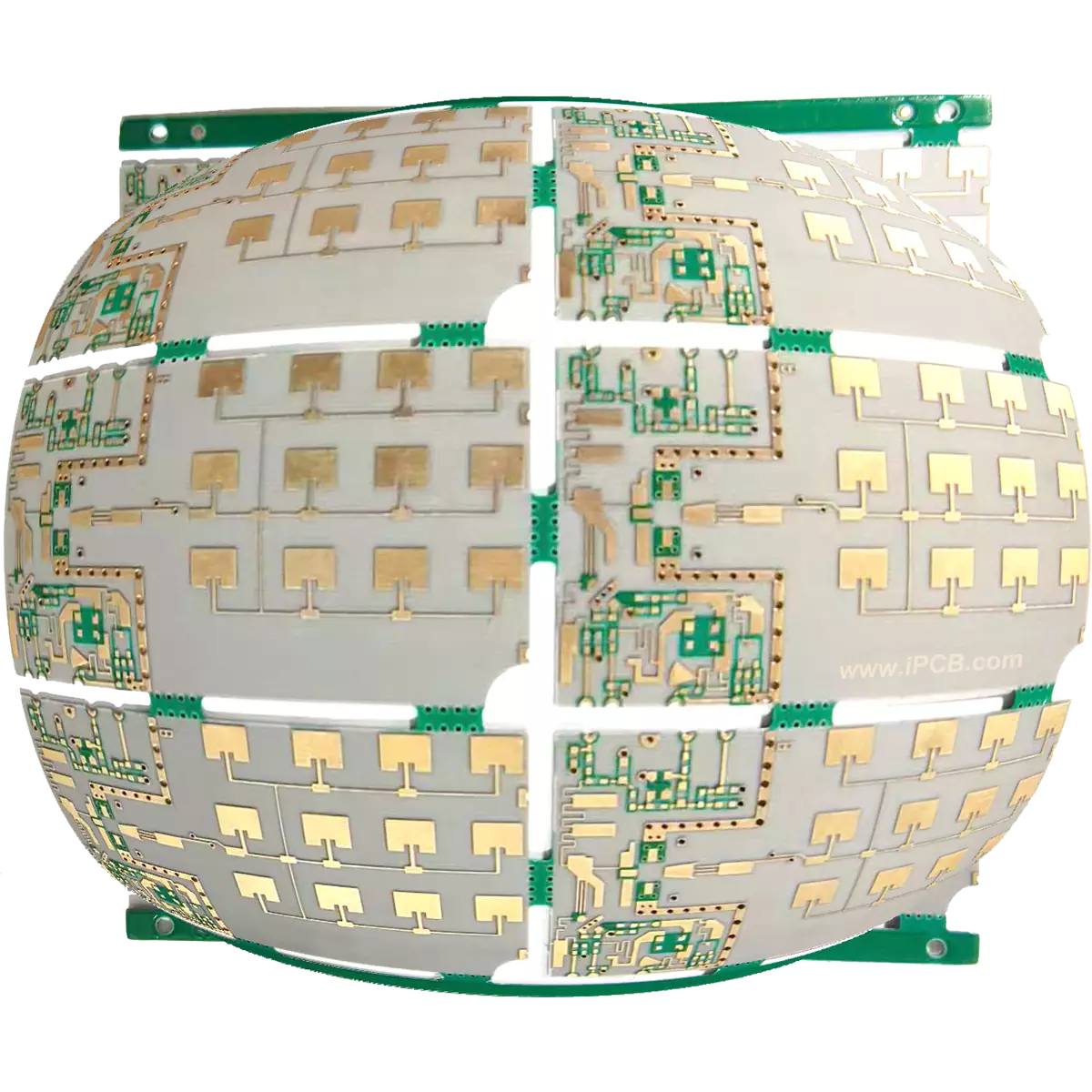

Our RF Microwave PCBs are high-performance circuit boards engineered for demanding high-frequency applications in the 5G, automotive, aerospace, and medical industries. Manufactured using premium Rogers, Taconic, and ceramic-filled PTFE composite materials, these PCBs deliver exceptional signal integrity, minimal loss, and outstanding thermal management for your most critical designs.

RF microwave PCB

Technical Specifications

Key Features & Advantages

Superior High-Frequency Performance: Our boards utilize advanced materials like ceramic-filled PTFE composites and Rogers laminates that offer stable dielectric constants (Dk) and ultra-low loss tangents (Df), ensuring minimal signal attenuation and distortion in mmWave applications up to 100GHz and beyond.

Exceptional Reliability & Compliance: Every PCB is rigorously built and tested to meet the stringent IPC-6018D quality standard for high-frequency (microwave) printed boards, guaranteeing performance in demanding environments. UL 94 V-0 certification ensures flame retardancy.

Precision Impedance Control: We guarantee tight impedance control with ±4.5% tolerance, which is critical for maintaining signal integrity and minimizing reflections in high-speed RF circuits.

Enhanced Thermal Management: Selected materials offer higher thermal conductivity (up to 2.7 W/m·K), which is significantly better than standard FR-4. This is crucial for power amplification (e.g., GaN amplifiers) and applications requiring efficient heat dissipation.

Robust Construction & Versatility: From flexible inner layer connections to multilayer constructs up to 40 layers, and from ultra-thin (0.12mm) to thick (11.5mm) boards, we provide design flexibility to meet complex architectural needs, including PTFE hybrid pressing.

Advanced Manufacturing Expertise: We employ specialized processes like plasma treatment for PTFE to ensure superior adhesion and solve challenges like drilling burrs and lamination bubbles, resulting in high yields and reliable products.

Applications

Our RF Microwave PCBs are ideal for a wide range of advanced electronic systems, including:

5G mmWave Infrastructure: Base stations, antennas, and backhaul radios.

Advanced Automotive Electronics: Radar systems (e.g., 77GHz automotive radar), sensors.

Aerospace & Defense: Radar systems, satellite communication , avionics.

Medical RF Devices: High-frequency diagnostic and therapeutic equipment.

High-Speed Computing & AI Servers: Emerging applications like AI server platforms (e.g., NVIDIA GB300 architecture) that require PTFE-based materials for enhanced signal integrity and thermal performance.

Why Choose Our RF Microwave PCBs?

We understand the critical demands of high-frequency electronics. Our partnership with leading material suppliers like Rogers and Taconic, combined with our expertise in processing these advanced materials, allows us to deliver PCBs that offer:

Unmatched Signal Integrity: Low Dk/Df materials minimize loss and preserve signal quality.

Superior Thermal and Mechanical Stability: With high Tg (>280°C) and low CTE, our boards perform reliably under thermal stress.

Strict Compliance and Traceability: Full adherence to IPC-6018D ensures product quality and reliability for high-frequency applications.

To ensure your high-frequency projects achieve optimal performance and smooth implementation, the IPC-6018D-compliant iPCB technical team stands ready to provide tailored support. Whether you need assistance with material selection optimization, custom design validation, impedance control fine-tuning, or solutions to complex manufacturing challenges, our team of experts will offer professional guidance based on your specific project requirements. Feel free to reach out to the iPCB technical team via our official contact channels—we will respond promptly to help you address technical pain points and accelerate the launch of your high-performance electronic products.
