  • RF system PCBA board

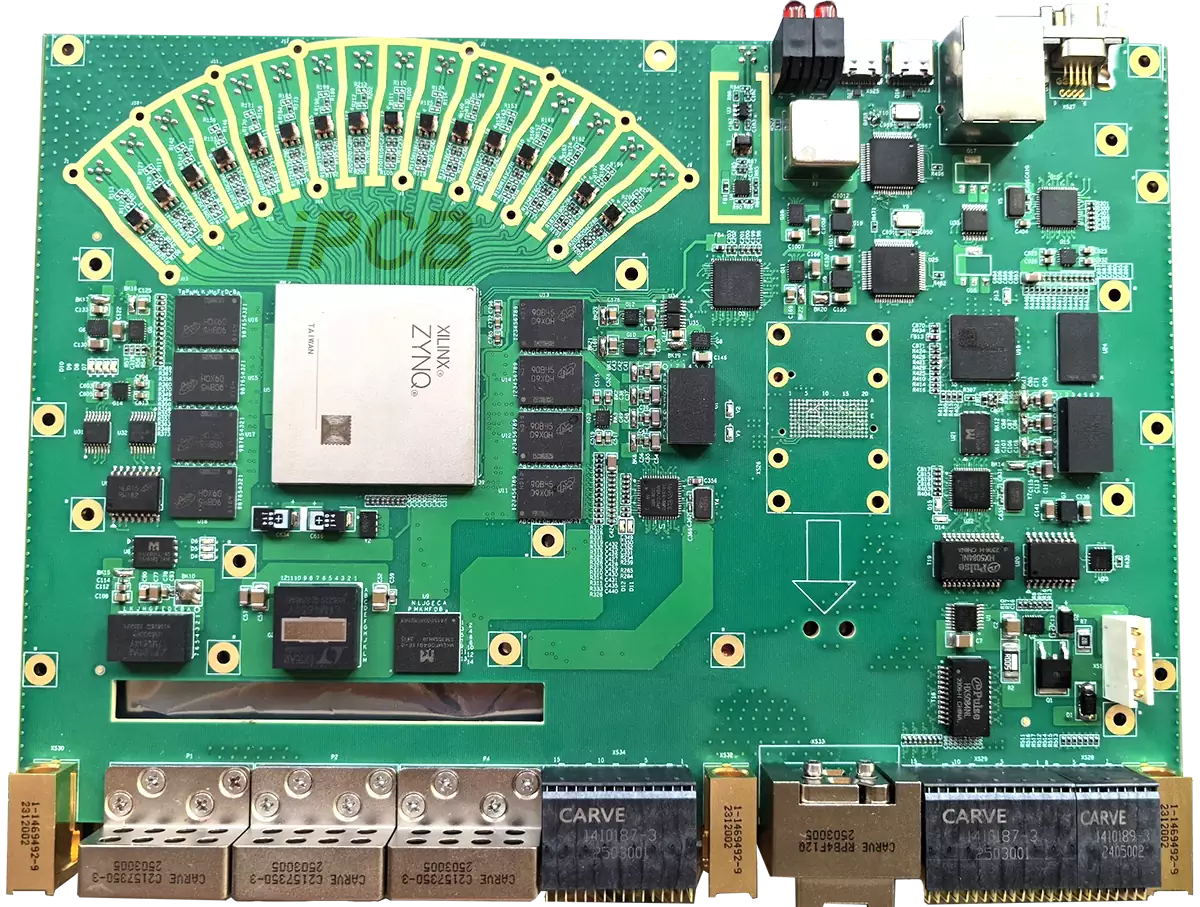

    RF system PCBA board

    Product: RF System PCBA Board

    Material: Rogers, High-Tg FR4, Ceramic (AlN)

    Quality standard: IPC-6012 Class 3, MIL-STD-883

    Dielectric constant: 3.4–10.1 @ DC–38GHz

    Layers: 6–14 layers

    Thickness: 0.2–2.4mm

    Copper thickness: 1–5 oz

    Surface technology: ENIG

    Special requirements: 50Ω±5%, -40℃~150℃, ≤0.6dB @28GHz

    Application: 5G, military radar, automotive V2X


    Product Description Technical Information

    At the heart of every seamless high-frequency system—from 5G’s ultra-fast networks to military radar’s precision—lies the RF System PCBA Board. Unlike ordinary circuit boards, it’s engineered to turn radio frequency challenges into reliable performance across industries.


    Material Intelligence for Every Frequency

    Each substrate is chosen to match exact RF needs:

    Rogers (RO4350B/RO4003C): Masters 28–38 GHz mmWave bands with a dielectric constant (Dk) of 3.4, reducing signal loss to ≤0.6dB at 28GHz—critical for extending 5G coverage.

    High-Tg FR4: Balances cost and capability for lower-frequency RF (≤6 GHz), ideal for industrial IoT sensors or automotive V2X at 5.9GHz.

    Ceramic (AlN): Thrives in extreme environments (military/aerospace radar, X/Ku-band) with -40℃ to 150℃ endurance and a Dk of 10.1 for uncompromised signal integrity.

    RF system PCBA board

    RF system PCBA board

    Precision Engineering for Flawless Signals

    Every detail is optimized to keep signals sharp:

    Layer & Copper Mastery: 6–14 layers with 1–5 oz copper use laser-drilled 0.1mm microvias to lock in 50Ω impedance (±5% tolerance)—eliminating signal reflection in RF transceivers.

    ENIG Plating: Electroless nickel immersion gold (Ni 2.3–4.5μm / Au 0.02–0.05μm) cuts contact resistance, vital for high-frequency connectors in 5G antennas or radar modules.


    Industry-Leading Reliability Across Sectors

    This PCBA powers innovation where it counts:

    Telecom: Fuels 5G/6G base stations to convert radio waves into gigabit-speed internet for urban networks.

    Defense: Drives military radar (X/Ku-band) for pinpoint target tracking and missile guidance.

    Automotive: Enables ADAS and V2X to keep self-driving cars connected and safe.


    Certified for Critical Environments

    Compliant with IPC-6012 Class 3 (precision), MIL-STD-883 (military ruggedness), and RoHS 3.0, the RF System PCBA Board is ready for regulated, high-stakes deployments.

    Product: RF System PCBA Board

    Material: Rogers, High-Tg FR4, Ceramic (AlN)

    Quality standard: IPC-6012 Class 3, MIL-STD-883

    Dielectric constant: 3.4–10.1 @ DC–38GHz

    Layers: 6–14 layers

    Thickness: 0.2–2.4mm

    Copper thickness: 1–5 oz

    Surface technology: ENIG

    Special requirements: 50Ω±5%, -40℃~150℃, ≤0.6dB @28GHz

    Application: 5G, military radar, automotive V2X



    iPCB Circuit provides support for PCB design, PCB technology, and PCBA assembly. You can request technical consultation or quotation for PCB and PCBA here, please contact email: sales@ipcb.com

    We will respond very quickly.
