RF PCB Board - Teflon PCB

I. The Scientific Foundation: Why Teflon is the Premier Choice for High Frequencies?

Analysis of Core Electrical Performance Parameters

The outstanding performance of our Teflon PCBs stems from the molecular structure of Polytetrafluoroethylene (PTFE): the high bond energy of carbon-fluorine bonds grants it extremely low polarity. At high frequencies of 10GHz, its dielectric constant (Dk) remains stable between 2.1 and 2.5—only half that of traditional FR-4 materials. More crucially, its dissipation factor (Df) is as low as 0.0002-0.0004. This translates to signal transmission losses at 60GHz millimeter-wave frequencies being reduced by more than an order of magnitude compared to FR-4, perfectly meeting the requirements for 5G base stations operating in the 28/39GHz bands.

Enhancement of Mechanical and Environmental Adaptability

Pure PTFE material suffers from insufficient mechanical strength (tensile strength of only 20MPa) and a relatively high coefficient of thermal expansion (CTE of approximately 150ppm/°C on the Z-axis). Through our proprietary molecular chain orientation enhancement technology—using mechanical stretching or chemical cross-linking to align PTFE molecules more uniformly—the Z-axis CTE can be reduced by 30% while maintaining stable dielectric properties. Furthermore, by incorporating nano-scale ceramic fillers (such as silica), the flexural strength of the composite material is increased to 45MPa—2.25 times that of pure PTFE—meeting the mechanical requirements for high-frequency substrates specified in the IPC-4103 standard.

Verification of All-Scenario Weather Resistance

In temperature-humidity cycling tests (-55°C to 125°C, 95% RH, 1000 hours), the dielectric constant drift of our modified Teflon substrates is less than 1.5%, significantly lower than the industry standard threshold of 3%. Its chemical corrosion resistance is unparalleled—it can withstand erosion by strong acids, strong alkalis, and organic solvents. This makes our Teflon PCBs the preferred choice in extreme environments such as marine exploration equipment and chemical processing systems.

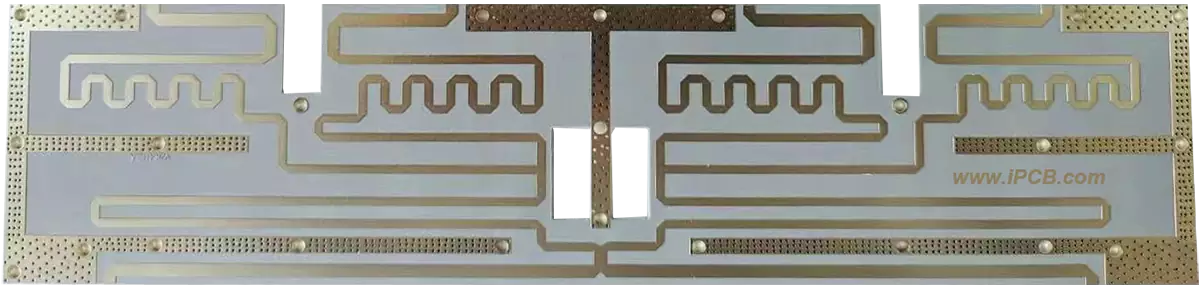

Teflon PCB

II. Breakthroughs in Manufacturing Processes: Precision Control from Material to Finished Product

Precise Formulation of Nano-Composite Fillers

Our advanced Teflon PCB manufacturing has overcome the limitations of traditional single-material systems. Utilizing surface modification technology for spherical silica (particle size ≤ 5μm), we achieve nano-scale uniform mixing of fillers and PTFE resin—eliminating agglomeration that could disrupt dielectric stability. Experimental data shows that after adding 20% modified ceramic fillers, the substrate’s dielectric constant can be stably controlled within the range of 2.2-2.5, while the dissipation factor remains below 0.002, perfectly adapting to high-frequency scenarios above 40GHz (e.g., satellite communication Ka-band modules).

Laser Micro-Drilling and Step-Sintering Processes

Traditional mechanical drilling can easily cause delamination in PTFE substrates, as the material’s low rigidity leads to uneven stress during cutting. In contrast, our UV laser drilling technology enables 10μm-level micro-vias with a hole wall smoothness (Ra) of less than 1μm, reducing edge scattering loss for high-frequency signals. In 28GHz band testing, our circuit boards manufactured using this process showed a reduction in insertion loss of 0.3dB/cm and optimized return loss to -25dB—critical for maintaining signal integrity in 5G small cell antennas.

Our sintering process adopts a precise step-heating profile (300°C → 330°C → 345°C). By extending the dwell time at each stage, internal stress from temperature changes is reduced, compressing the dielectric constant fluctuation range to ±0.03 across production batches. This ensures consistent performance for customers requiring large-volume orders (e.g., automotive radar module manufacturers).

Surface Activation and Copper Foil Bonding Technology

The inert surface of PTFE (low surface energy of ~18 mN/m) presents a significant challenge for copper foil adhesion—traditional bonding methods often result in peel strength below 0.8kN/m. Through our argon-oxygen mixed plasma treatment, we create micro-roughness on the PTFE surface without damaging the base material, increasing surface energy to ~45 mN/m and boosting copper foil peel strength to 1.2kN/m. This thoroughly solves the issue of impedance discontinuity in high-frequency signal transmission.

For even higher reliability requirements (e.g., aerospace applications), chemical etching treatment (sodium-naphthalene solution) can be employed to further enhance interfacial bonding strength, meeting the stringent MIL-PRF-31032 military standard for long-term environmental stability.

III. Selection Guide and Quality Control: Decision-Making Beyond Technical Parameters

A Guided Methodology for Material Selection

To help customers match Teflon PCBs to their specific needs, we recommend the following selection framework:
- Priority: Maximum High Frequency & Lowest Loss – Our premium-grade pure PTFE materials (Dk=2.2, Df=0.0009) are ideal for demanding scenarios above 60GHz, such as 6G test equipment and space-borne communication modules.
- Balancing Cost & Performance – Our ceramic-filled PTFE composites deliver excellent performance in the 20-40GHz band (Dk=2.4±0.05) at 30% lower cost than pure PTFE, suitable for 5G base station power amplifiers (PAs).
- Demand for Mechanical Strength – Our glass-reinforced PTFE types (incorporating 10% woven glass fiber) offer a Z-axis CTE as low as 100ppm/°C, making them ideal for complex multi-layer board designs (e.g., 8-layer automotive radar PCBs) that require dimensional stability during reflow soldering.
- Specialized Requirements – We offer modified PTFE substrates with ultra-tight Dk consistency (±0.02) for phased array antennas, as well as flame-retardant grades (UL94 V-0) for indoor electronic systems (e.g., data center microwave links).

Quality Certifications and Testing Standards

We adhere to global quality benchmarks to ensure Teflon PCBs meet industry and customer-specific requirements:
- Electrical Performance – We utilize the SPDR (Split Post Dielectric Resonator) method across the 10-110GHz frequency band for accurate Dk/Df characterization, ensuring Dk accuracy of ±0.25% and Df measurement precision of ±0.0001.
- Environmental Reliability – Our products comply with IPC-6012 Class III certification, undergoing rigorous testing including 1000 temperature cycles (-55°C ~ 125°C), 500 hours of humidity testing (85°C/85% RH), and vibration testing (10-2000Hz, 10g acceleration).
- Environmental Compliance – All Teflon PCBs meet RoHS 2.0 (EU 2011/65/EU) and REACH (EC No. 1907/2006) requirements, with lead-free (Pb-free) process options as standard. We also offer halogen-free versions for customers in eco-sensitive industries (e.g., medical devices).

From 5G base station RF frontends and satellite communication transceivers to automotive millimeter-wave radar modules (77-81GHz) and precision medical MRI RF coils, our Teflon PCBs serve as the critical “nerve center” of high-end electronic equipment. This is achieved through superior dielectric properties, proven adaptability to extreme environments, and continuously innovative manufacturing processes.

Choosing the right Teflon PCB solution from us not only meets current technical demands but also provides performance headroom for future product upgrades (e.g., 6G, autonomous driving L4/L5). Consult IPCB technical team today to obtain customized material selection plans, DFM (Design for Manufacturability) guidance, and sample testing support—gaining a competitive edge in the challenging field of high-frequency design.
