In the world of electronics, heat is one of the most significant challenges to device reliability. As circuits become more powerful and compact, the internal temperatures of these devices can soar. Standard circuit board materials often struggle under these conditions, leading to warping or failure. This is why partnering with an expert high Tg FR4 PCB manufacturer is essential for any project that operates in demanding thermal environments. By using materials with a higher Glass Transition Temperature (Tg), manufacturers can ensure that your circuit boards remain stable and functional even when the heat is turned up.

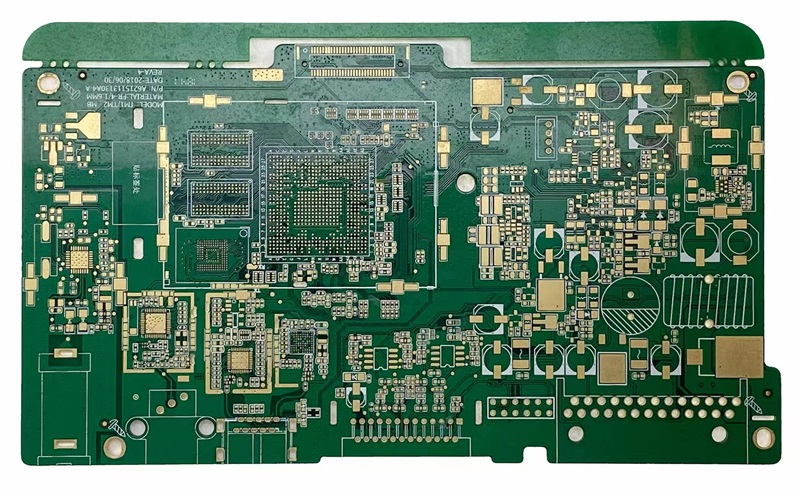

high Tg FR4 PCB manufacturer
What is High Tg FR4 and Why Does It Matter?
To understand the value of these boards, we first need to look at what "Tg" means. Tg stands for the Glass Transition Temperature. This is the temperature at which the base material of the PCB—the resin—begins to transform from a hard, glassy state into a softer, more rubbery state.
Standard FR4 boards typically have a Tg of 130°C to 140°C. For many consumer gadgets, this is perfectly fine. However, in high-power applications, the temperature can easily exceed these limits. High Tg FR4 materials generally have a transition point above 170°C. Choosing a high Tg FR4 PCB manufacturer allows you to build boards that maintain their physical shape and electrical properties during high-temperature operation, preventing the delicate copper traces from breaking or delaminating.
Key Advantages of High Tg FR4 for High-Performance Circuits
Using High Tg materials offers several benefits that go beyond just heat resistance. These advantages are why industrial and automotive engineers insist on this material grade.
---Excellent Thermal Stability: High Tg boards have a lower coefficient of thermal expansion. This means the board expands less as it heats up, which protects the integrity of the vias and through-holes.
---Improved Mechanical Strength: Even at elevated temperatures, the board maintains its structural rigidity. This is vital for boards that are part of heavy machinery or devices subject to physical vibration.
---Superior Moisture Resistance: These boards are often better at resisting humidity, which prevents internal short circuits and corrosion over long-term use.
Why Your Choice of Manufacturer is Critical?
Not all factories are equipped to handle high-heat materials. A professional high Tg FR4 PCB manufacturer understands that these materials require different processing parameters than standard FR4. For instance, the lamination process for High Tg materials requires higher temperatures and longer press cycles to ensure the layers bond correctly.
Furthermore, drilling through High Tg material is more difficult because the resin is harder. This requires specialized drill bits and optimized speeds to prevent "smearing" or damaging the holes. By working with a high Tg FR4 PCB manufacturer that has invested in modern precision machinery, you can be confident that every hole and trace on your board is manufactured to the highest possible standard.
Common Applications Requiring High Tg Materials
Where exactly do we see these advanced boards in action? They are the "silent heroes" in many critical infrastructure systems.
---Automotive Systems: From under-the-hood engine controllers to high-intensity LED headlights, cars generate immense amounts of heat.
---Industrial Power Supplies: Devices that convert large amounts of electricity generate significant heat as a byproduct and require the stability of High Tg substrates.
---Telecommunications: 5G base stations and network servers run 24/7 at high capacities, making heat management a top priority.
---Aerospace: Electronics in aircraft must survive extreme temperature shifts while maintaining perfect signal integrity.
Selecting a top-tier high TG FR4 PCB manufacturer ensures that these sensitive systems do not fail when they are needed most.
How to Evaluate a Manufacturer for High Tg Projects?
When searching for a partner, you should look deeper than just the price. The technical capabilities of your high Tg FR4 PCB manufacturer can make or break your product’s success. First, verify that they carry the necessary certifications, such as ISO 9001 and UL safety listings. This ensures their processes are standardized, and their materials are safe.
Second, ask about their testing procedures. A reputable high Tg FR4 PCB manufacturer should offer comprehensive testing, including thermal stress tests, flying probe testing, and Automated Optical Inspection (AOI). Finally, ensure they have a transparent supply chain for their raw materials. Using "no-name" resins can lead to inconsistent Tg levels, so it is vital to verify that your high Tg FR4 PCB manufacturer uses high-quality laminates from trusted global suppliers.
Conclusion
As technology continues to evolve toward higher power and smaller sizes, managing heat will remain a primary concern for designers. Investing in High Tg FR4 material is one of the most effective ways to "future-proof" your electronics against thermal failure. By choosing an experienced and trustworthy high Tg FR4 PCB manufacturer for long-term success, you are ensuring that your products can withstand the toughest conditions without compromising on performance or safety. In an industry where reliability is the ultimate goal, the right material and the right partner are the keys to a successful launch.
