In the rapidly evolving world of electronics, standard components often fall short of meeting the complex demands of innovative products. The custom pcb board is the essential technology that bridges this gap, offering unparalleled precision, performance, and flexibility. From advanced medical devices to next-generation IoT gadgets, understanding the role and benefits of a custom PCB is crucial for achieving product success and market differentiation.
1. What is a Custom PCB?
A PCB is the fundamental base of any electronic circuit, providing both mechanical support and electrical connections for components. It consists of layers of non-conductive substrate material with etched conductive pathways (traces). A custom pcb board is one specifically designed and fabricated to meet the exact, unique specifications of a particular application or product. Unlike off-the-shelf boards, every parameter—shape, size, materials, and trace layout—is optimized for a single purpose.

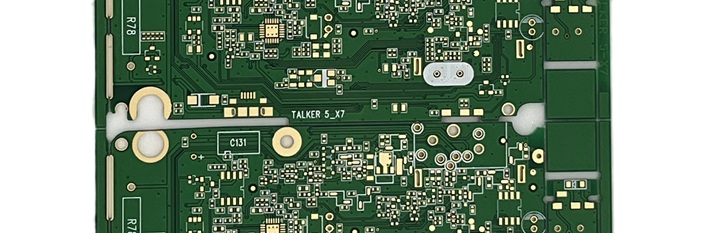

custom pcb boards
2. Key Aspects of Customization
---Unique Form Factors: Boards can be designed in any shape (circular, curved, asymmetric) to fit non-standard enclosures, maximizing space utilization.
---Material Selection: Choosing the optimal substrate is critical. While FR4 is common, high-frequency designs may require Rogers laminates, and high-power applications often use Aluminum Core PCBs for superior thermal management.
---Layer Stacks and Density: The number of layers (from 1 to 30+) is chosen based on circuit complexity. High-density interconnect (HDI) techniques are often used to fit complex circuits into a small area.
---Impedance Control: Crucial for high-speed signals (e.g., USB 3.0, PCIe), custom pcb board design allows for precise control over trace geometry and dielectric spacing to maintain signal integrity and prevent data loss.
3. Why Choose a Custom PCB Board?
The decision to use a custom pcb board yields significant advantages over using generic options.
3.1. Optimal Electrical Performance
Custom design allows engineers to meticulously manage signal paths, power delivery, and noise reduction. This meticulous layout leads to:
---Reduced Noise and Crosstalk: Careful routing and grounding minimize interference.
---Improved Thermal Management: Strategic copper placement and thermal vias ensure efficient heat dissipation, extending component lifespan and reliability.
---Signal Integrity (SI): Essential for high-frequency circuits, custom layouts ensure signals arrive cleanly and without distortion.
3.2. Space and Weight Reduction
In portable and wearable electronics, size is a major constraint. A custom pcb board is designed to utilize every millimeter of available space, allowing for miniaturization and a lighter final product—a critical factor in consumer electronics.
3.3. Enhanced Reliability and Durability
Customization extends to the board's robustness. For harsh environments (automotive, industrial, aerospace), the board can be designed with:
---Specialized Coatings: Conformal coatings for moisture and chemical resistance.
---Rigid-Flex Technology: Combining rigid circuit sections with flexible cables, improving durability in products subject to vibration or repeated flexing.
3.4. Competitive Edge
A proprietary custom pcb board makes a product unique and difficult to replicate. It embodies the core intellectual property of the design, offering a distinct market advantage.
4. The Custom PCB Design and Manufacturing Process
The journey from concept to a working board is systematic and precise.
Phase 1: Schematic and Layout
---Schematic Capture: The electrical circuit diagram is created using EDA software (e.g., Altium, KiCad), defining all components and connections.
---Board Outline and Stacks: The physical size, shape, and layer configuration are defined, including stack-up order and material type.
---Component Placement: Strategic positioning of parts to optimize electrical and thermal performance.
---Routing: Drawing the copper traces. This is the most crucial step of custom pcb board manufacturing, involving careful consideration of power, ground, and high-speed signal lines.
Phase 2: Design Verification
---Design Rule Check (DRC): Automated and manual checks against the manufacturing house's capabilities (minimum trace width, drill size, spacing) and the project's electrical rules.
---Simulation: Using tools to simulate signal and power integrity before physical production, preemptively identifying potential issues.
Phase 3: Fabrication and Assembly
---Gerber Files: The final design data is converted into Gerber files—the standard blueprint for fabrication.
---Prototyping: A small batch is manufactured for testing. This is a vital, iterative step to validate performance and catch errors before full-scale production.
---Assembly: Components are mounted onto the fabricated board using Surface Mount Technology (SMT) or Through-Hole Technology (THT).
Conclusion
The choice to utilize a custom pcb board is a commitment to quality and optimization. It moves a design beyond standard limitations, enabling superior performance, precise form factors, and ultimate reliability in the final electronic product. For products where every aspect of performance and space matters, a custom board is not just an option—it is a necessity for innovation.
