In modern electronics and precision temperature control, traditional heating elements are being replaced by a thinner, more adaptable technology: flexible PCB heaters. These polyimide (PI) film-based heating elements, with their exceptional flexibility, fast thermal response, and high power density, have become essential components in medical, aerospace, automotive, and advanced consumer electronics.

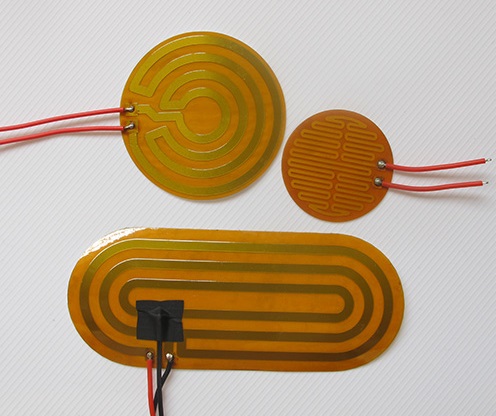

flexible pcb heater
1. What is a Flexible PCB Heater?
A Flexible PCB Heater is an etched foil heater. It utilizes standard PCB manufacturing processes to precisely etch resistive heating elements onto an extremely thin, flexible dielectric substrate, typically polyimide (PI) film. When current passes through these precisely engineered resistive traces, heat is generated, enabling uniform and precise temperature control.
The typical structure of a Flex PCB Heater is as follows:
---Base Material: Primarily polyimide (PI), which provides excellent insulation and thermal stability.
---Heating Element: Etched copper or nickel-chromium alloy foil, used to generate heat.
---Coverlay: Protects the heating element and is typically also PI film.
2. The Revolutionary Advantages of Flex PCB Heaters
Compared to traditional wire-wound or silicone rubber heaters, Flex PCB Heaters offer significant structural and performance advantages. Traditional heating elements are bulky, heavy, and lack flexibility. However, Flex PCB Heaters, leveraging advanced flexible PCB technology, enable thinner, lighter, and more efficient heating solutions.
Firstly, their thickness can be as low as 0.15mm, making them extremely lightweight and flexible enough to conform to complex curved surfaces, far exceeding the adaptability of silicone rubber or wire-wound heaters. Thanks to their precision etched circuit design, Flex PCB Heaters achieve excellent temperature uniformity while maintaining high power density, meeting the demands for fast response and stable temperature control.
3. Manufacturing and Quality Control of Flex PCB Heaters
3.1 Manufacturing Process
The production process for Flex PCB Heaters is similar to that of flexible PCBs, but with higher requirements for etching precision and lamination.
First, photolithography is used to precisely transfer the heating circuit pattern onto metal foil and then etch it into shape. The etching depth and uniformity directly impact the resistance value and power accuracy. The PI insulation layer is then precisely aligned and laminated to the heating layer under high temperature and pressure to ensure excellent insulation performance and mechanical strength. Finally, the PCB is formed using laser or die punching to achieve the desired precise shape.
3.2 Quality Control and Testing
To ensure accurate and safe temperature control, Flex PCB Heaters undergo several rigorous tests, including:

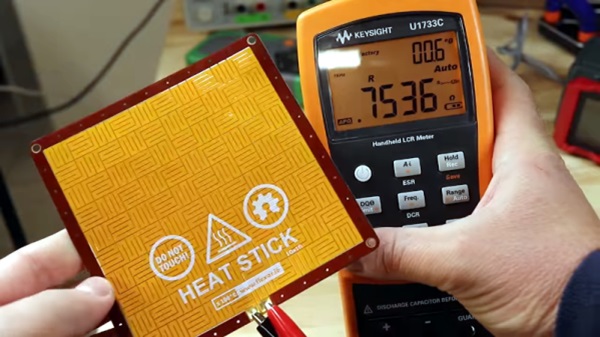

---Resistance and power testing: Confirms resistance values within a ±5% tolerance and verifies actual power consumption;
---Thermal imaging: Uses an infrared camera to monitor temperature distribution and avoid hot spots;
---Dielectric strength testing: Evaluates the insulation layer's withstand voltage performance to ensure electrical safety;
---Flex life testing: Verifies reliability and durability under dynamic use.
Through precision manufacturing and strict quality control, Flex PCB Heaters achieve highly accurate and reliable heating performance while maintaining a lightweight and thin structure.
4. Applications of Flex PCB Heaters
Due to their lightweight, flexible, and highly precise temperature control characteristics, Flex PCB Heaters have been widely used in various high-tech fields, providing efficient and reliable thermal management solutions for equipment.
flexible pcb heater
4.1 Medical and Biotechnology
In medical devices, Flex PCB Heaters can be used in portable microfluidic chips, blood analyzers, and DNA detectors, achieving rapid and precise heating reactions and ensuring stable and reliable test results. They are also used in heating pads for operating tables, neonatal incubators, and other applications, gently and evenly maintaining a comfortable temperature for the human body.
4.2 Aerospace and Military
In extremely low-temperature environments, Flex PCB Heaters are used in camera and sensor housings for aircraft, drones, or satellites to effectively de-ice and prevent fogging, ensuring the normal operation of critical equipment. Furthermore, they provide stable temperature control for satellite and military electronic modules, improving overall system reliability.
4.3 Automotive Electronics and Industrial Equipment
Flex PCB Heaters are widely used in sensor protection for autonomous driving systems, such as lidar, camera, and radar dome heating, effectively preventing icing and fogging and ensuring the safety performance of ADAS systems. They are also used to preheat electric vehicle batteries, optimizing performance and charging efficiency in low-temperature environments. They can also provide low-temperature heating in flexible or curved displays, maintaining the flexibility and stability of the display material.
Summary
A Flex PCB Heater is more than just a heating element; it's a precision-engineered technology capable of solving extreme space and environmental challenges. Its adaptability, lightweight design, and precise temperature control are accelerating technological advancements from medical diagnostics to automotive safety systems.
Choosing a skilled Flex PCB Heater partner is a critical step in ensuring your product's performance, reliability, and market competitiveness. Investing in this advanced technology means investing in the future of your product.
