A blank PCB (printed circuit board) is used as the basis for building electronic circuit boards before soldering electronic components. It is also known as a bare PCB. It consists of an insulating substrate material, such as FR-4, and multiple layers of laminated copper foil. Blank PCB boards have not been patterned for circuitry and require the copper layers to be chemically etched to form the desired conductive paths between holes and pads based on the PCB design. Blank PCBs offer flexibility and customization, enabling the low-cost manufacturing of a wide range of PCB designs and faster time to market.

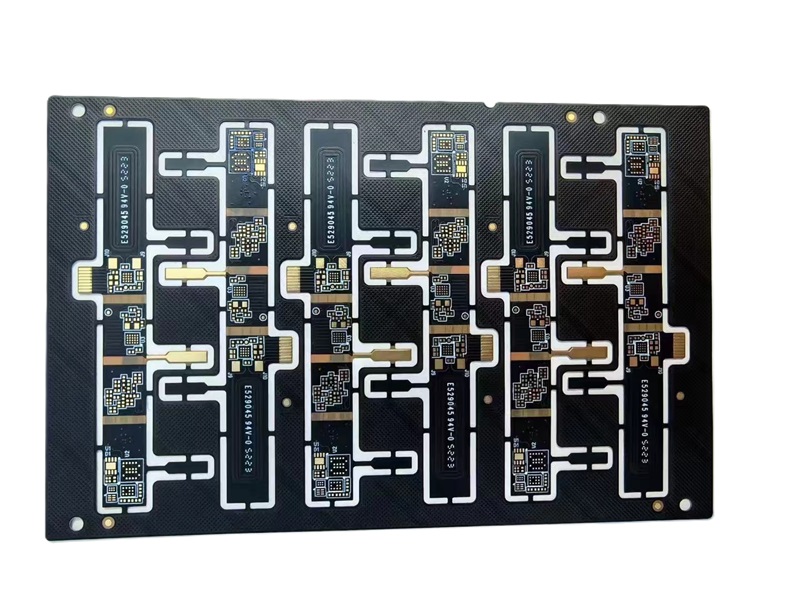

blank pcb boards
Advantages of Blank PCBs
Manufacturing blank PCBs offers significant advantages over assembling circuits on perforated boards or prototyping with strip boards. These advantages make blank PCB boards an integral part of modern electronic design and production.
1. Flexibility and customisation of multiple designs
Blank PCBs can be manufactured with great flexibility to suit different circuit requirements. The manufacturing process can produce boards with anywhere from one to more than 32 conductive layers. This helps integrate complex circuits cost-effectively. Blank PCBs are also unlimited in size and shape during the design or manufacturing process. While rectangular blank PCB boards are common, round, triangular, and other-shaped boards can also be produced depending on mechanical requirements. This design flexibility enables PCBs to fit seamlessly onto a wide range of devices and packages.
2. Cost savings
Since mass production amortizes fixed infrastructure and labor costs, the cost of producing each blank PCB is reduced. This enables companies to maintain profit margins while selling equipment containing PCBs at a lower price. Companies can also use the cost savings to provide additional product features, thereby increasing competitiveness.
3. Faster Time to Market
Blank PCB manufacturing speeds up the time it takes for electronics to reach the market. Rather than manually designing and assembling multiple prototypes, most design verification and testing can be conducted on a fabricated blank board. Only a few iterations are needed to identify any problems with the circuit or board before starting final production. This avoids costly delays due to prototyping problems. As a result, blank PCB boards significantly accelerate the product development lifecycle.
4. Support for prototyping and testing
Manufacturing blank PCBs provides an effective platform for testing circuit designs through prototype iterations. Designers can quickly iterate on multiple concepts on pre-made blank boards without manually punching holes. Prototyping verifies circuit functionality, thermal performance, signal integrity, and interference aspects. Any issues identified during the prototyping stage can be resolved before finalizing the design. This ensures that the PCB circuit and layout will function properly after production.
Types of Blank PCBs
Blank PCBs can be manufactured in various forms and constructions to meet the needs of a wide range of electronic products, including rigid boards for structural stability and flexible boards for vibration resistance. Some of the main types include:
1. Rigid PCBs
The most common type of blank PCB boards, rigid circuit boards, offer the highest mechanical strength and are easy to assemble for electronic circuits. Their dimensional stability lends itself well to mounting high-density components. FR-4 glass epoxy substrates are typically used, though alternative materials, such as CEM-1, can be used as well.
2. Flexible PCBs
Flexible PCBs use thin, insulating polymer substrates that can be bent and twisted. This enables innovative designs that were previously unattainable. Common materials for flexible blank PCB boards include polyimide, PET, PEN, and other plastic films combined with bonded copper foils. Protective coatings are available to withstand environmental factors.
3.Rigid-Flexible Boards
When both mechanical flexibility and pliability are required, rigid-flex PCBs combine these characteristics. The multi-layer rigid section provides stability and a mounting surface, and the thinner flexible section can bend in various ways. Both designs offer the advantages of each type.
4. HDI PCBs:
High-density interconnect (HDI) PCBs are essential for miniaturization to integrate complex digital processors and enable high-density interconnects. These PCBs use thinner dielectrics, stack more conductive layers, and use smaller vias and alignments to enable high-density component mounting.
5. Specialty Material PCBs
Alternative insulating materials are occasionally used on PCB substrates to meet the needs of specific applications. Examples include ceramic packages for transistors and Teflon resins for high-temperature or automotive high-voltage applications. To maximize performance, the best raw material for the blank PCB board must be selected.
Blank printed circuit boards (PCBs) are a cost-effective foundation for assembling medium- to high-volume custom PCBs. Starting with high-quality blank materials, manufacturing processes such as chemical etching can be optimized to quickly produce the necessary copper-layered circuits. Focusing on substrate parameters and etching processes transforms blank PCB boards into fully functional custom circuit boards for specific applications. Their flexibility makes them ideal for prototyping, testing, and low-volume production.
