Printed circuit boards are critical components in the electronics manufacturing industry, available in a wide variety of sizes and shapes. While rectangular and square PCBs dominate the market, non-standard geometric shapes such as octagonal and circular PCBs are also available. Non-traditional PCB shapes are required because they must be installed into specific enclosures, which is crucial for achieving the PCB's intended application. Although circular PCBs are less common, demand for them is growing steadily, primarily driven by continuous technological advancements.

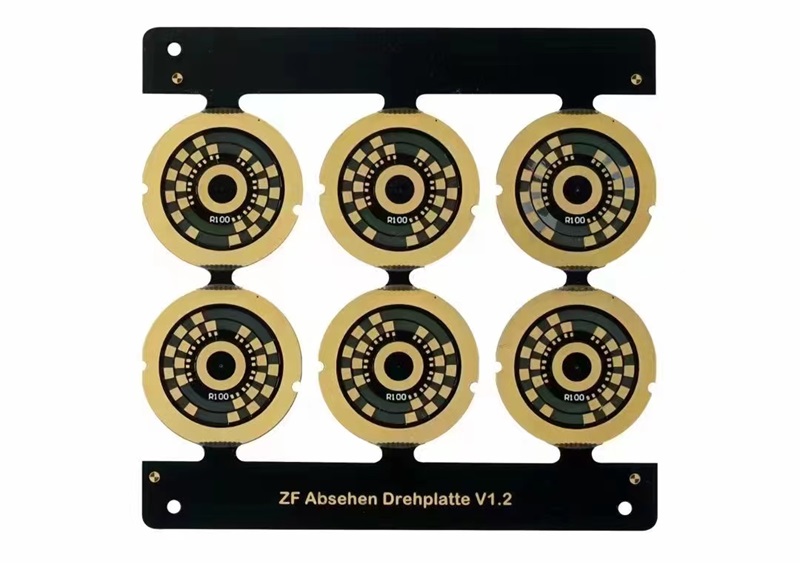

circular PCB
What is a Circular PCB?
Circular PCBs are characterized by their circular shape and are used to establish electrical connections with circuits. Their applications are diverse, spanning various devices such as consumer electronics and LED PCBA. Unlike rectangular PCBs, circular PCBs offer ample board space, making them the preferred choice for certain applications. They are favored in both residential and commercial settings. However, their production requires complex routing processes, which inevitably increases their cost.
The advantages of circular PCBs over other shapes include: space savings; reduced EMI noise; improved thermal management; aesthetic appeal; and enhanced signal integrity. Therefore, the decision to use a circular PCB over other shapes depends on the unique requirements of the specific application. These requirements may include space constraints, thermal management demands, the necessity to reduce electromagnetic interference, or aesthetic considerations.
Key Considerations for Circular PCB Design
Due to manufacturing process limitations, the design process for circular PCBs is more complex than that for typical rectangular layouts. This is primarily attributed to constraints in the manufacturing process. Specifically, the outer edges of circular PCBs can only be formed using straight line segments. This fundamental characteristic necessitates thorough consideration and strategic planning during the initial design phase.
First, create the circular perimeter by adding a circle on the silkscreen layer. Various software tools exist specifically for circular PCB design, each offering unique features and capabilities. Note that discontinuous routing is the only separation method available for circular PCBs, further complicating the design process. Therefore, a deep understanding of the software and meticulous attention to detail are crucial for ensuring design success. When performing break-and-route for circular PCBs, adhere to these two principles:
---Maintain a minimum 10mm gap between circular PCBs when using a 2mm routing tool (increase this gap for larger routing tools).
---Use at least four 45° break-and-route segments. Larger boards require more segments.
Additionally, two techniques exist for component placement on circular PCBs: Surface Mount Technology (SMT) and Through-Hole Technology (THT). SMT is considered the optimal choice for component placement. As an automated process, SMT streamlines manufacturing while enhancing production efficiency. Furthermore, applying SMT to circular PCBs reduces stress, ultimately yielding higher-quality end products.
Applications of Circular Circuit Boards
Circular PCBs are widely used in various electronic devices and systems where space-saving, aesthetics, or specific design requirements are prioritized. Some common applications of circular PCBs include:
1. LED Lighting: Enables uniform LED distribution, suitable for various lighting fixtures.
2. Cameras and Imaging Equipment: Accommodates lenses and sensors, achieving a compact, streamlined design.
3. Sensors and Instrumentation: Compact form factor facilitates integration into diverse sensors.
4. Wearable Devices: Ergonomic design enhances wearing comfort.
5. Automotive Systems: Adaptable to confined interior spaces, such as lighting and dashboards.
6. Consumer Electronics: Enhances aesthetics, widely used in audio systems, remote controls, and more.
7. Industrial Equipment: Compact and rugged, suitable for control, monitoring, and automation systems.
8. Medical Devices: Adapts to irregular shapes for diagnostics, monitoring, and implants.
9. Aerospace and Defense: Compact and reliable for avionics, radar, and communications.
10. Internet of Things (IoT) Devices: Seamlessly integrates into smart homes and various connected devices.
In short, circular circuit boards are not merely a variation of traditional PCBs; they represent an evolution in electronic design philosophy. They challenge engineers' creativity while granting product designers the freedom to realize unique concepts. As the technology continues to mature and its applications expand, circular PCBs will undoubtedly play an increasingly vital role in the future of electronics.
