Single-sided flexible PCB boards (FPCs) are the most basic type of flexible circuit. They consist of a layer of flexible dielectric film laminated to a single layer of copper. The copper layer is then chemically etched according to a specified circuit pattern design. If desired, a polyimide overlay can be added to the circuit board to provide additional insulation and protection. Because there is only one layer of copper, it is also known as a single-layer flexible PCB, single-layer flexible circuit, or even single-layer FPC. Because single-layer FPC is the thinnest in thickness, it is more flexible than other types of FPC, which is one of the reasons people are moving away from rigid boards and toward flexible boards.
Structure of Single-Sided Flexible PCB
Single Side Flexible PCB has a specific structure. It mainly consists of a polyimide layer, a copper layer and an adhesive layer. Specifically, single-sided flexible PCBs use polyimide film as the substrate or cover layer, which covers both sides of the single-sided circuit board.

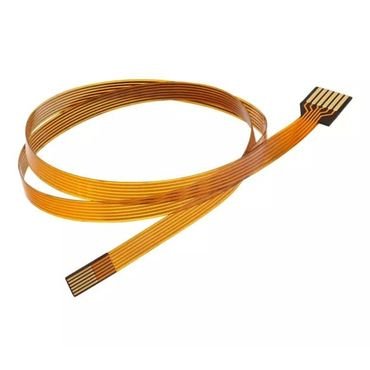

single sided flexible pcb
To create the circuit layer, copper is chemically etched to create the desired circuit pattern, and this copper layer (the circuit layer) is located in the center of the single-sided flexible PCB. The copper layer is then bonded to the polyimide film with an adhesive.In terms of circuit protection, unlike rigid PCBs that use a solder mask to protect the circuit, flexible PCBs use polyimide as the top layer instead of the solder mask of rigid PCBs.
In addition, in some cases, flexible circuit boards require the application of reinforcements. Stiffeners are usually applied to the surface mount technology (SMT) or through-hole assembly area of the board and are typically made of FR4/polyimide, aluminum, or steel sheet. These stiffeners are bonded to the flexible circuit by thermal bonding or pressure-sensitive adhesive (PSA). The main function of the stiffeners is to increase the strength of the solder joints, improve the abrasion resistance of the board, reduce stress, and also promote heat dissipation, thus ensuring the stability and reliability of the flexible PCB.
Advantages of Single-Sided Flexible PCB
A single-sided flexible PCB has many important benefits. It uses single-sided flexible circuits to replace traditional wiring harnesses. This dramatically shortens assembly time and reduces costs. It also makes the design process simple and can be completed quickly. It's very cost-effective.
Single-sided flexible PCB boards are more durable. They can be bent and coiled without breaking. They can also be moved and stretched in any direction to connect parts and wires. Flexible PCB technology can make electronic products smaller and lighter because people want smaller, portable, and compact products.
Flexible circuits also have other advantages. They dissipate heat well and are easy to solder. This makes the signal quality stronger and more stable. It also improves the circuit's ability to control impedance and reduces wiring errors. It's also easier to use in harsh environments and has high tensile strength, so it won't break if bent or deformed.
However, designing and manufacturing flexible PCBs is more complicated than making rigid PCBs. Fewer layers can be used, and the circuits that can be made are more complex.
Applications for Single-Sided Flexible PCBs
Single-sided flexible PCBs are used when space is limited or when the board needs to fit curved or irregular shapes. Some common uses for this are:

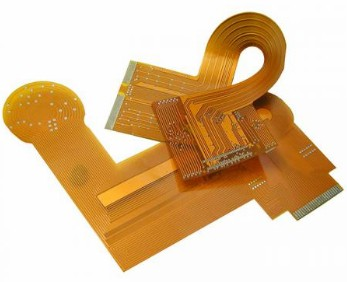

single sided flexible pcb
1. Wearable Electronics: Flexible PCBs are often used in smart watches, fitness trackers, and other wearable devices. These devices need to be flexible because they are worn on the body. Flexibility is important for comfort and the device's size.
2. Medical Devices: Medical devices like flexible catheters and sensors often use single-sided flexible PCBs to be more flexible and reduce the risk of damage during use.
3. Automotive: Flexible PCBs are used in cars for things like dashboard displays, interior lighting, and sensors that need to be flexible.
4. Aerospace: Flexible PCBs are used in satellites, aircraft, and drones in the aerospace industry. They are used to make these objects lighter and fit into tight spaces.
5. Consumer Electronics: Some electronics, like digital cameras and bendable phones, use a kind of circuit board that can bend but not break.
In short, single-sided flexible PCBs are great for a lot of new applications that you couldn't do with rigid circuit boards because they can bend and are thin and light. When using single-sided flexible circuits, you can get the benefits of flexible PCBs by working with a special manufacturer and following good design practices. Single-sided flexible PCB technology is a good option for making connections in electronic products that need to be more flexible, move more easily, and be more easily combined with other parts.
