With the development of electronic technology, PCB lays a good foundation for a variety of electronic products, such as the development of LED lighting PCB. LED stands for light-emitting diode. LEDs are semiconductors that emit light when electrically connected. They are soldered to printed circuit boards. The chips are bonded together using a heat sink and ceramic base. The LED PCB board is the most important part of LED lighting. LED PCBs can get very hot, but it is hard to cool them using normal methods. Therefore, metal core PCBs are often used in LED applications because they can spread heat better. Aluminum is often used to make PCBs for LED lamps. Aluminum PCBs usually have a thin layer of special material that helps them spread out and remove heat. This layer is much better at doing this than the hard materials used in traditional PCBs.

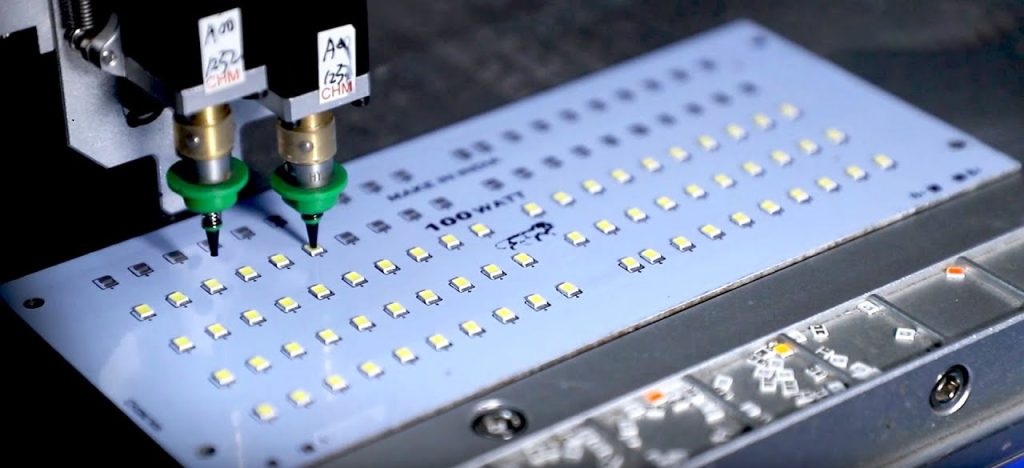

led pcb board
Advantages of LED PCBs
As electronic products become smaller and thinner, more people are using LED PCBs.
1. Efficiency: LEDs typically use less energy than other lighting technologies. LEDs convert more of the electrical energy they use into light energy. This means they use less power and cost less to power.
2. Lifespan: LED lamps last longer than fluorescent lamps and can be used for tens of thousands of hours without needing to be replaced. So, there's little chance of it being replaced.
3. Durability: LED light PCB boards are strong and long-lasting. They can handle a lot of shock and vibration, which makes them great for harsh environments and outdoor use.
4. Compact size: LED light PCB boards are small and compact. They are very lightweight, which makes them perfect for lighting fixtures and displays. They provide lighting solutions that save space and are used every day.
5. Fast lighting: LED lights up immediately when they are turned on. They do not need to warm up first. Unlike other light bulbs, LEDs need to be warmed up before they light up, making them quicker and easier to use.
6. Customized LED PCBs: LED PCBs are easy to customize because they are flexible. You can choose from a wide range of colors with custom LED PCBs. They also offer many options for lighting effects and ambiance. LED light PCBs let you precisely control the brightness, color, and pattern of the LEDs, which increases how flexible the design is.
Applications for LED PCBs
PCB LED lamps are great because they are energy efficient, cheap, and can be designed in many ways. This makes them useful for many different lighting applications.
1. Telecommunications: LED indicators and displays are often used in telecommunication equipment because they can handle a lot of heat. Aluminum-based LED PCB board are better for this.
2. Automotive: Aluminium PCB LEDs are also used in car turn signals, brake lights, headlights and other places. Aluminum PCBs are perfect for the car industry because they're strong and cheap.
3. Computers: LED displays and indicators are becoming more and more common in computer applications. And aluminum PCB LEDs are an ideal solution because of the heat sensitivity of computer machinery. In addition to LED applications, aluminum PCBs are also used for computer components such as power supply units and CPU boards because they can conduct heat well.
4. Medical: Lighting tools used in surgeries and medical examinations often use high-power LEDs, and these LEDs often use aluminum PCBs, mainly because of the durability and thermal conductivity of aluminum PCB LEDs. This ensures that the medical equipment works properly, no matter how many patients are seen in the medical office. In addition to lighting tools, medical scanning technology often uses aluminum PCBs.
Encapsulation of LED PCB

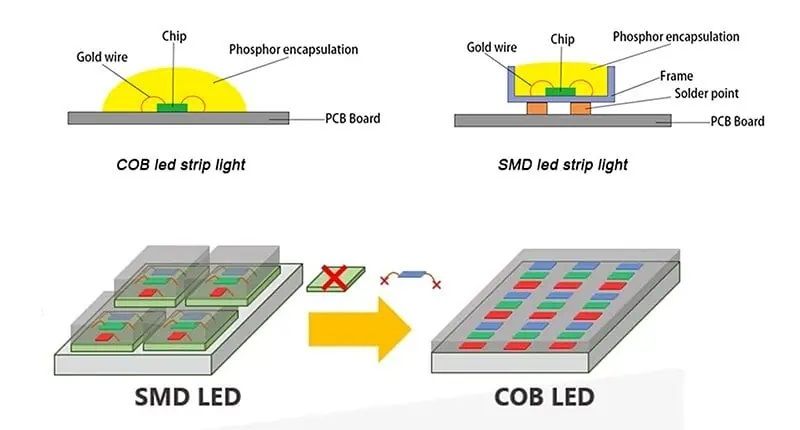

As science and technology keep developing, LED encapsulation technology is also improving. There are many ways to package LEDs, but COB and SMD LEDs are especially interesting.
SMD LED package is a type of LED chip that is attached to a circuit board. This package has the advantages of being small, light, and easy to automate. The SMD LED package is better at getting rid of heat and can handle higher operating temperatures. However, the disadvantage of SMD LED packages is that the light is dispersed, and it needs to rely on optical design to adjust the direction of the light.
led pcb board
COB LED packages are a type of LED package where the LED chip is directly attached to the circuit board. This type of package is more integrated, which means it has fewer parts and is smaller. The COB LED package is also better at dissipating heat. This helps protect the LED chip.
COB LED displays are better than traditional SMD LED displays. They have many advantages, such as comprehensive protection, micro-optical structure, high energy efficiency, wide color range, high refresh rate, high gray scale, and high contrast. They are used in many situations, such as command centers, traffic hubs, advertising and media, exhibitions and displays, conferences and forums, medical and health care, and finance and insurance.
In summary, the LED PCB board revolutionizes lighting with aluminum cores for superior heat dissipation, ensuring durability and efficiency. Compact, energy-saving, and customizable, it powers automotive, medical, and tech applications. Innovations like COB encapsulation enhance performance, cementing LED PCB boards as vital to modern, sustainable lighting solutions.
