PCB epoxy resin is a commonly used thermosetting material that is formed through a chemical reaction after mixing the resin and curing agent. The most common type is bisphenol A epoxy resin, which is used to coat copper-clad laminates to form the sturdy insulating substrate required for circuit boards, ensuring stable connections between copper wires and components.

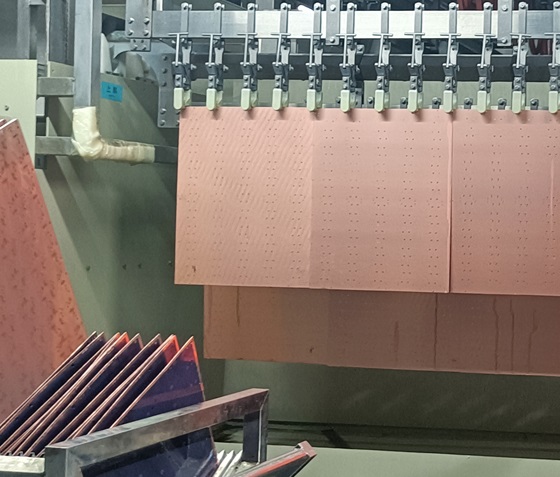

pcb epoxy
Epoxy coatings play a critical role in protecting the integrity of PCBs in harsh electrical and mechanical application environments. Key features include:
1. Epoxy resins protect circuit boards from performance degradation caused by thermal cycling, vibration, shock, moisture, and contaminant ingress.
2. Major variants include polyurethane, silicone, acrylic, UV-curable, and solvent-based; each variant offers unique performance advantages.
3. Protecting PCBs involves sealing surface moisture, balancing thermal gradients, securing components, repairing localized damage, and preventing dust/chemical ingress.
4. Application methods ranging from spraying to dispensing and injection can optimize epoxy resin application to meet production requirements.
Printed circuit boards can be made from a variety of materials, but the most commonly used material is a type of PCB epoxy resin called FR-4. It is made from glass fiber woven fabric impregnated with epoxy resin adhesive. FR stands for flame retardant, and the number 4 indicates the difference between this material and other materials. FR-4 has excellent moisture resistance, chemical resistance, and heat resistance, making it ideal for electronic devices that operate in harsh environments.
Common PCB substrates include FR-2 (phenolic paper-based), CEM-1, and CEM-3 (hybrid materials). CEM-1 utilizes a paper core with fiber reinforcement and is suitable for single-sided boards. CEM-3 is a glass fiber and epoxy composite, offering moderate performance but lower than that of FR-4.
The following are the main types of FR-4 PCB epoxy resin materials:
1. Standard FR-4: The most common type of FR-4. It is cost-effective and reliable, primarily used in consumer-grade products such as household electronics and devices not intended for extreme environmental conditions.
2. High TG FR-4: A high-performance variant of FR-4. It has a higher glass transition temperature (TG) than standard FR-4. This type of PCB epoxy maintains mechanical stability under elevated temperatures, making it suitable for demanding applications in industrial, automotive, and military-grade products.
3. High IRC TG FR-4: FR-4 material with a high insulation resistance constant. Due to its ability to resist current flow, high IRC TG FR-4 material offers the highest performance but also the highest cost. It is ideal for high-frequency applications such as advanced computing and telecommunications, as it minimizes crosstalk and signal integrity degradation.
When selecting PCB epoxy resin materials, the following five aspects should be prioritized:
1. Operating Temperature: For products requiring high-temperature resistance (e.g., reflow soldering, automotive electronics), high-Tg materials (≥170°C) should be chosen. Conventional FR-4 is only suitable for standard environments.
2. Electrical Performance: For high-speed or RF circuits, low-Dk, low-Df high-frequency epoxy materials should be selected to ensure signal integrity.
3. Mechanical and thermal stability: In environments with multiple thermal cycles or strong vibrations, resins with CTE matching copper should be selected to prevent delamination and cracking.
4. Cost considerations: Conventional FR-4 is suitable for mass production; high-performance materials are suitable for high-end applications with stringent reliability requirements.
5. Regulatory compliance: Ensure materials comply with standards such as RoHS, REACH, and UL94-V0, especially for export markets or specialized industry applications.
PCB epoxy resin has excellent physical, mechanical, and electrical insulation properties, as well as good adhesion to a variety of materials and flexible processing techniques, which are not found in other thermosetting plastics. It has become an indispensable material in various industries.
