The PCB market will reach $73.1B by 2027 (5.0% CAGR), yet traditional methods struggle with accuracy, efficiency, and inflexibility. Modern circuit board assembly machine solve this with AI vision, multi-nozzle placement, and modular designs. As 5G/IoT demand micron-level precision, these automated circuit board assembly machines transition from optional tools to survival-critical assets, enabling defect-free production at scale.

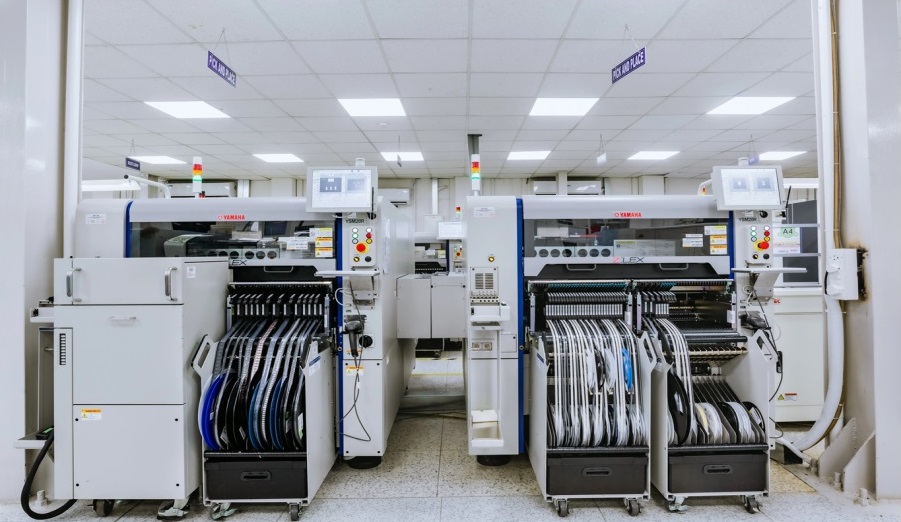

circuit board assembly machine
Modern printed circuit board assembly relies on circuit board assembly machine to solder components with micron-level accuracy, ensuring functional circuits. Key systems like wave soldering and AOI inspection automate workflows, while material handlers optimize throughput. Choosing automated circuit board assembly machines depends on component types (SMD/through-hole), production scale (prototyping vs. mass), precision needs, and budget. Optimal circuit board assembly machine configurations balance speed with zero-defect outcomes, directly impacting yield and ROI in electronics manufacturing.
PCB Assembly Equipment List
1. Soldering Machines
As the core of circuit board assembly machine, soldering ensures precise electrical connections by melting solder between components and PCB pads. Key soldering machine types include:
-Wave Soldering Machines
These immerse the bottom side of a PCB into a wave of molten solder, simultaneously soldering all pads and component leads. Ideal for high-volume through-hole component soldering, wave soldering achieves high throughput of up to thousands of boards per hour. However, it is unsuitable for surface-mount devices (SMDs).
-Reflow Soldering Ovens
Reflow ovens use controlled heat to melt solder paste, forming joints between SMDs and PCB pads. With multiple heating zones for gradual temperature ramping, they ensure exceptional soldering quality and are optimal for SMD assembly. Trade-offs include longer cycle times compared to wave soldering.
-Selective Soldering Machines
These apply solder selectively to specific components using microwaves or solder fountains. Comprising a solder pot, pump, flux applicator, and conveyor, their key distinction lies in targeted solder application. Selective soldering accommodates both through-hole and SMD components, making it ideal for post-reflow soldering of heat-sensitive parts or manual rework.
2. Inspection Machine
It is very important to check solder joints and defects when making printed circuit boards. Some common circuit board assembly inspection machine include:
-Automatic Optical Inspection (AOI)
AOI machines use a high-resolution camera to check the quality of solder joints. They use special software to compare the PCB to a PCB that is known to be good.AOI provides a fast and accurate inspection right after soldering. It can check solder joints and where components are located. However, it may not detect small problems.
-X-ray Inspection
X-ray inspection uses X-ray imaging to look inside the PCB. It checks the soldering, position, and orientation of components. It makes a 3D image of the board, showing any hidden problems. X-ray inspection can provide very detailed results. However, this equipment costs more than AOI. It is better for smaller boards.
-Flying Probe Tester
This equipment uses two removable "flying probes" to test PCBs for shorts, breaks, resistance, and functionality. The probes move across the board and touch the test points. Flying probe testing checks the PCB assembly and finds manufacturing defects. It can replace small-batch testing that uses fixtures.
3. Cleaning equipment
After soldering, there will be a residue left on the PCB. This residue is corrosive and conductive. Cleaning is very important.Here is some circuit board assembly cleaning machine you can find in most homes:
-Washer: The washer uses a liquid, like deionized water, to clean the PCB. There are three types of cleaners: batch cleaners, in-line cleaners, and ultrasonic cleaners.
-Cleaners: Specialized cleaners like alcohol, solvents, and detergents are used to effectively clean PCBs before cleaning.
-Dryers: Centrifugal dryers are used to thoroughly dry PCBs after cleaning to avoid any moisture left behind.

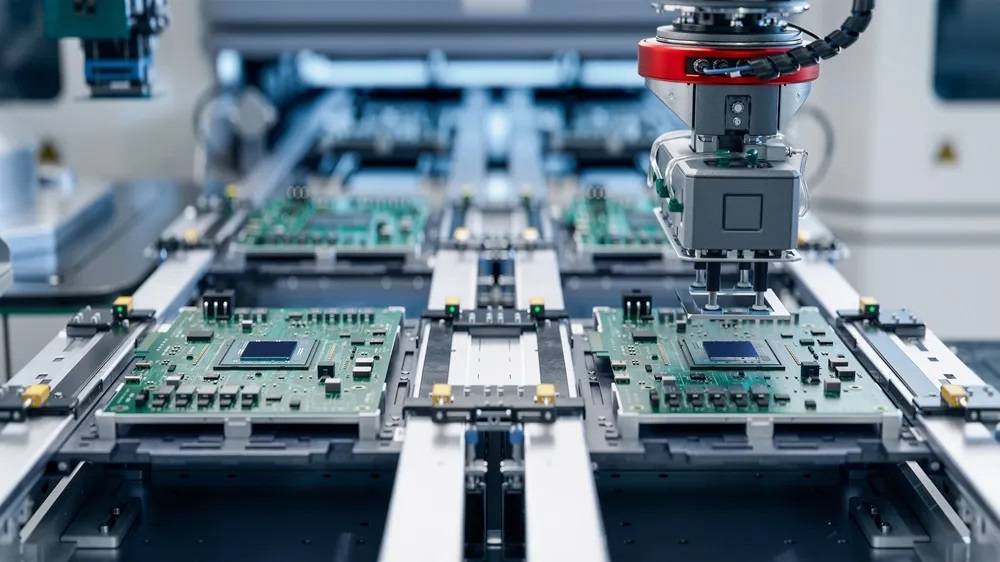

circuit board assembly machine
Choosing the right PCB assembly machine
1. A basic machine for small batch PCB assembly may include:
-Reflow oven for SMD soldering
-THD component selective soldering machine
-Automatic solder paste printer
-Small component placement machine
-AOI inspection system
-Cleaning equipment such as washing machines and dryers
2. High-volume production machines include:
-Wave soldering machine
-Large reflow oven
-High-speed component placement machines
-2-3 AOI machines (pre- and post-reflow)
-X-ray inspection system
-Industrial washing system
-Extensive conveyor connections between machines
-Test systems and flying probe testers
Conclusion
Choosing the right combination of machines based on production volume, PCB type, precision needs, and budget can ultimately lead to efficient, high-quality PCB assembly. With a wide range of suppliers globally, manufacturers can build an optimised production line to meet their precise needs. By adopting more automation and smart manufacturing principles, PCB assembly machine can reap the many benefits of higher throughput, better quality, lower costs, and greater reliability in the production of electronic devices.
