A printed circuit board is a piece of metal that conducts electricity. It is also known as a blank PCB or bare PCB board, which refers to a circuit board that has not been fitted with any components and has not been drilled. During the assembly process, traditional PCBs serve as the base component on which various electronic components are mounted. Additionally, bare PCBs establish electrical connections between different components through conductive pathways. A bare PCB usually includes these components: Patterns, PCB substrate, metallic coating, and essential conduction pathways.
The steps involved in manufacturing bare PCBs include the application of laser directional imaging, oxidation, and lamination; drilling and chemical copper plating; drying the thin film outer layer; electroplating and stripping; screen printing, and the application of a solder mask layer. However, defects may arise during this process. Therefore, it is important to discuss the defects that may occur and their solutions.
bare pcb board
-Extra holes
All bare PCB boards have holes. These holes are referred to as through-holes. They penetrate the entire blank board. These holes serve as conduits for conductive vias carrying signals. These signals establish interconnections between the various layers of the PCB. However, excessive holes on the circuit board can lead to errors during the bare PCB manufacturing process. They reduce available space and the area for signal routing.
-Insufficient or Excessive Copper
This is another error that bare PCB boards manufacturers may encounter. Copper is the primary material used for wiring on blank circuit boards. Due to its conductivity, copper facilitates rapid signal transmission. However, both insufficient and excessive copper can lead to defects in blank circuit boards. Insufficient copper may cause short circuits, while excessive copper may lead to corrosion.
-Short Circuit Issues
A short circuit occurs when wires that should not come into contact with each other do so. Short circuits cause extremely high currents to flow through the circuit. However, this issue can be resolved by replacing the wires. If this is not done, your bare PCBs will not function properly.
After making the bare PCB board thickness, it's important to test the circuit board. This process is called "bare PCB board testing." There are two common methods for testing bare boards: fixture testing and flying probe testing. This is a standard step in making PCBs. All types of bare boards, except for single-layer boards, must undergo testing. These tests help identify problems in the circuit before the design is approved for mass production. So, it's important to test thoroughly at the start to avoid problems that might show up later, after production is already underway.
The main reasons to test something are to make sure it works and that it can be relied on. Testing helps you track all through-holes, vias, and traces. The bare PCB board is strong before you install the expensive parts. Although testing bare boards can be expensive and time-consuming, it is very important.In the long run, testing bare boards can save you time, money, and effort. This helps avoid the costs associated with circuit board repairs and maintenance. After testing, manufacturers can quickly find any problems with the bare board.Testing bare boards helps ensure they will work properly. PCBs are always densely packed during miniaturization. Therefore, it's essential that the bare board can reliably solder expensive components. Even the smallest mistake on a blank PCB can cause electronic parts to fail. This circuit board is the foundation of the electronic system. If it fails, the whole system will be affected. So, it's very important to start with a strong foundation.
Various testing methods can be used for bare PCBs, each offering different levels of accuracy, speed, and cost-effectiveness. The most commonly used methods include visual inspection, electrical testing, and automated testing. Let's take a closer look at these methods.
-Flying probe testing, suitable for small-batch or prototype PCB testing. In this method, a set of probes ‘fly’ over the PCB, contacting test points and pads to check for continuity and isolation. The advantage of flying probe testing is that it does not require test fixtures, making it flexible and cost-effective.

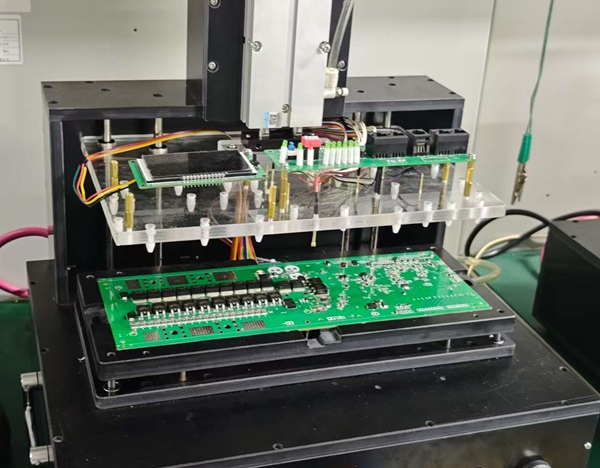

-Bed-of-Nails Testing, a fixture-based testing method designed for high-volume PCB production. It consists of a row of spring-loaded test pins (‘nails’) arranged in a grid pattern. Each pin contacts a specific test point on the PCB, enabling the tester to simultaneously check continuity, isolation, and other electrical characteristics. The primary advantages of nail bed testing are high speed and high precision, but the fixtures used are relatively expensive.
Bare board PCB testing is a critical step in ensuring circuit board reliability. By combining visual inspection, electrical testing, and automated technology, manufacturers can identify and correct defects early in the production process. By selecting the appropriate testing methods based on PCB design and production requirements, manufacturers can produce reliable circuit boards that lay the foundation for high-performance electronic products.
