RF antenna design is a crucial aspect of modern wireless communication systems. Today, an increasing number of devices we use require antennas. Antennas serve as the interface between guided electromagnetic waves in transmission lines and waves propagating through free space, playing a vital role in transmitting and receiving information. They are used in a wide variety of devices, including televisions, radios, mobile phones, and computers. RF antennas are also utilized in various wireless technologies, including Wi-Fi, Bluetooth, and GPS.
In RF antenna design, the principle of operation involves converting energy between electrical signals and electromagnetic waves. During transmission, the antenna transforms high-frequency current into electromagnetic waves that travel through space; during reception, it converts incoming electromagnetic waves back into electrical signals and transfers the energy efficiently to the receiving device through a matching network. Key performance factors include operating frequency, impedance matching, and structural design.

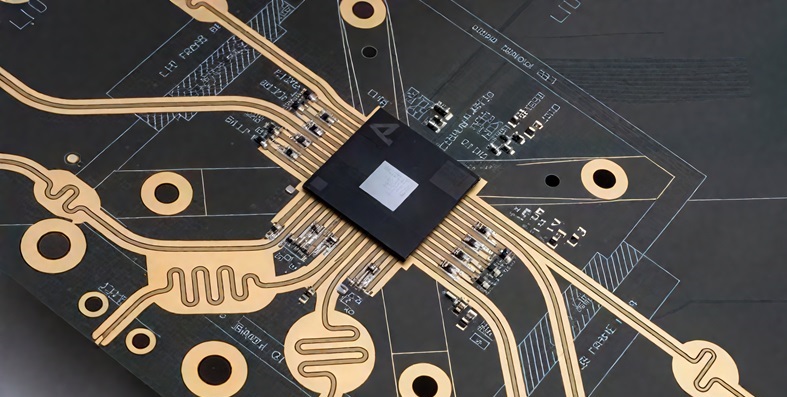

rf antenna design
Common Antenna Types
1. PCB Antennas
In RF antenna design, PCB antennas operate by controlling the ratio of conductor length to signal wavelength. Common topologies include inverted F, inverted L, serpentine, and folded monopole. The ground plane significantly affects bandwidth, radiation efficiency, and radiation pattern. They are economical and easy to manufacture, making them suitable for low-power applications such as BLE. These include: monopole antenna, dipole antenna, inverted F antenna and serpentine inverted F antenna
2. Wire Antennas
Compared to other antennas, wire antennas are less commonly used in 5G communications due to their larger spatial and vertical dimensions. These are classic antennas made from quarter-wavelength conductors. They are mounted on a PCB but extend above the PCB plane into the free space above the ground plane.
3. Chip Antennas
This antenna type is extremely compact and ideal for small IoT devices. It must adhere to grounding size requirements, cannot be adjusted in length, has higher BOM costs, and is primarily used in specific RF antenna design scenarios. It performs best when paired with large ground planes and low-frequency bands (e.g., those used in computers, satellite broadcasting, and CPS devices).
4. Patch Antennas
Patch antennas are commonly used in IoT devices supporting GPS. They feature a flat conductor surface structure. These antennas are compact and small in size, making them suitable for integration into small devices and systems, including 5G smartphones, IoT devices, and small cellular base stations. Patch antennas can also be designed for right-hand circular polarization or left-hand circular polarization, making them suitable for integration and enabling dual polarization and reconfiguration functionality.
5. Whip Antennas and Paddle Antennas
These are externally connected via coaxial connectors and are commonly used in ISM, LoRa, and LPWAN applications. Quarter-wave whip antennas installed vertically can enhance performance and are particularly effective in outdoor RF antenna designs.
The 5 key parameters to consider for an RF antenna design
1. Frequency Range
In RF antenna design, the operating frequency is a fundamental parameter that affects the physical dimensions and radiation characteristics of an antenna. Generally, antenna size is inversely proportional to frequency; the lower the frequency, the larger the antenna.
2. Bandwidth
This refers to the frequency range within which an antenna can operate effectively. It is typically defined as the frequency range over which the antenna maintains acceptable performance in terms of impedance matching, radiation pattern, and gain.
3. Gain and Efficiency
Antenna gain is a measure of an antenna's ability to concentrate energy in a specific direction compared to an isotropic radiator. It is typically expressed in decibels (dB) and is closely related to directivity and efficiency. Antenna efficiency is the ratio of the power radiated by the antenna to the power input to the antenna. It accounts for losses within the antenna structure and is typically expressed as a percentage.
4. Polarization Mode
Polarization describes the direction of the electric field vector of the radiated electromagnetic waves. Common polarization types include linear (vertical or horizontal), circular, and elliptical.
5. Radiation Pattern
In RF antenna design, the radiation pattern refers to the distribution of signal intensity radiated by the antenna in space, which can be categorized into omnidirectional, directional, or combined patterns. Different patterns affect the shape and range of the signal coverage area.
Antenna PCB Applications
1. Smartwatch Applications in RF Antenna Design
In RF antenna design for smartwatches, space constraints often require quarter-wavelength monopole antennas matched to 50 ohms with an L-type network. Placement parallel to the strap enables an omnidirectional pattern in the 2.4 GHz Bluetooth band.
2. Automotive Radar PCB
For automotive rf antenna design, four patch antennas can be arranged for beam steering, linked by microstrip feed lines with tuned isolation slots, and integrated into a 24 GHz radar transceiver PCB to produce a forward-facing broadside pattern.
3. Wearable Medical Sensors
In RF antenna design for medical wearables, MIFA antennas reduce size and resonate at the 915 MHz ISM band for sensor data links. Flexible PCBs allow the antenna to conform to skin while the ground plane isolates it from the body.
RF antenna design plays a central role in ensuring high-performance wireless communication. By selecting the right antenna type, optimizing structure, and matching key parameters, engineers can achieve stable signal transmission across diverse applications.
